$1,949.00 AUD
Shipping calculated at checkout.
Detailed Specification

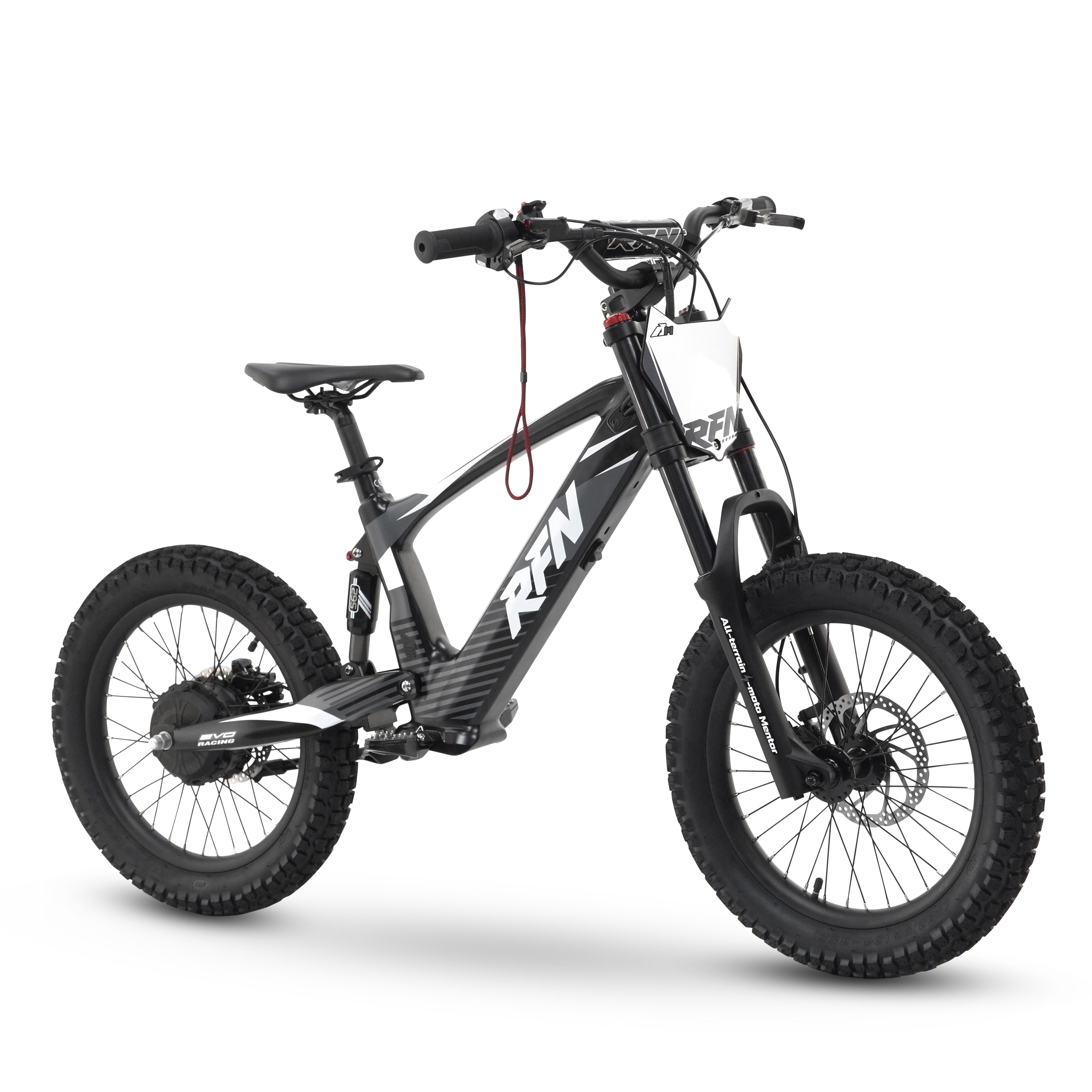

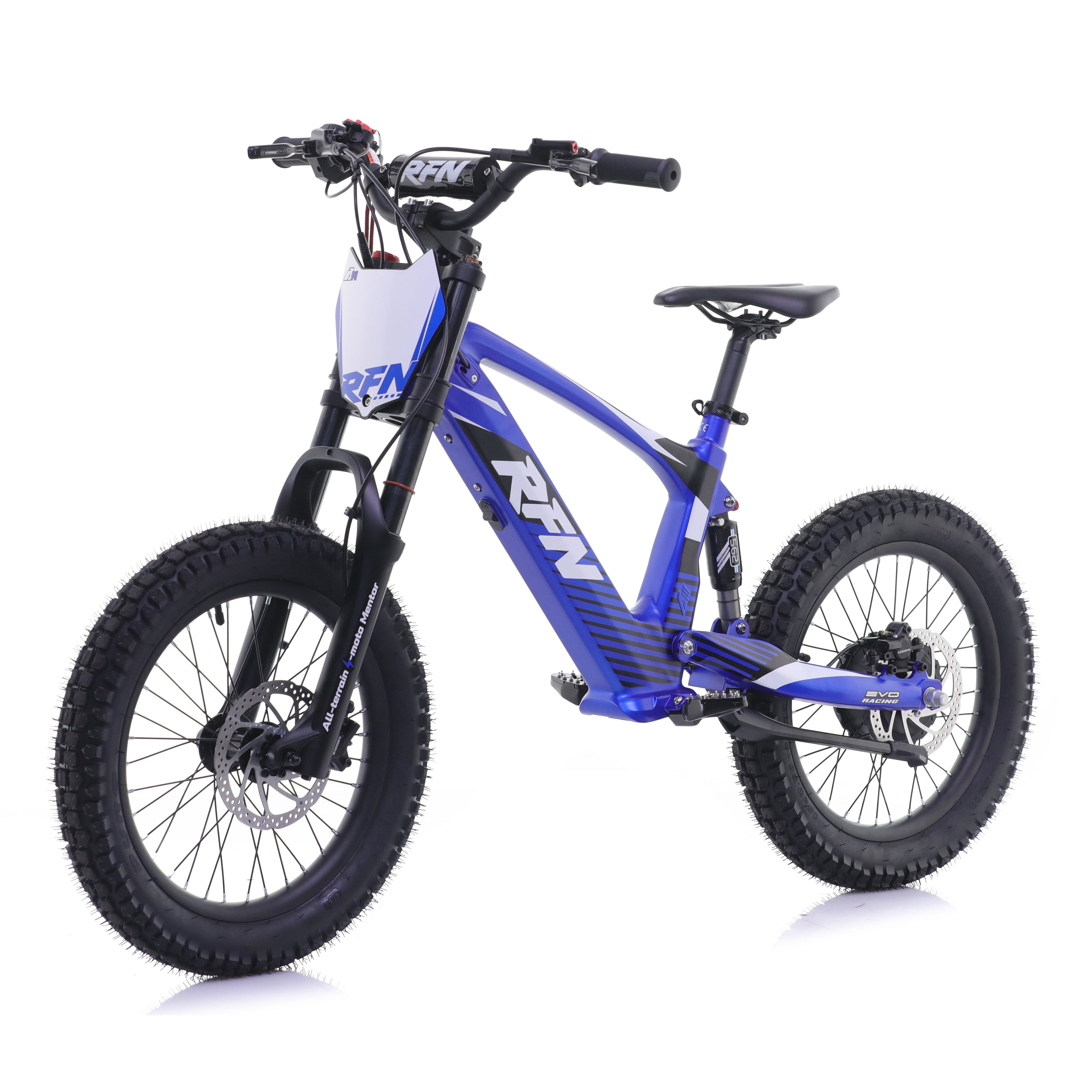

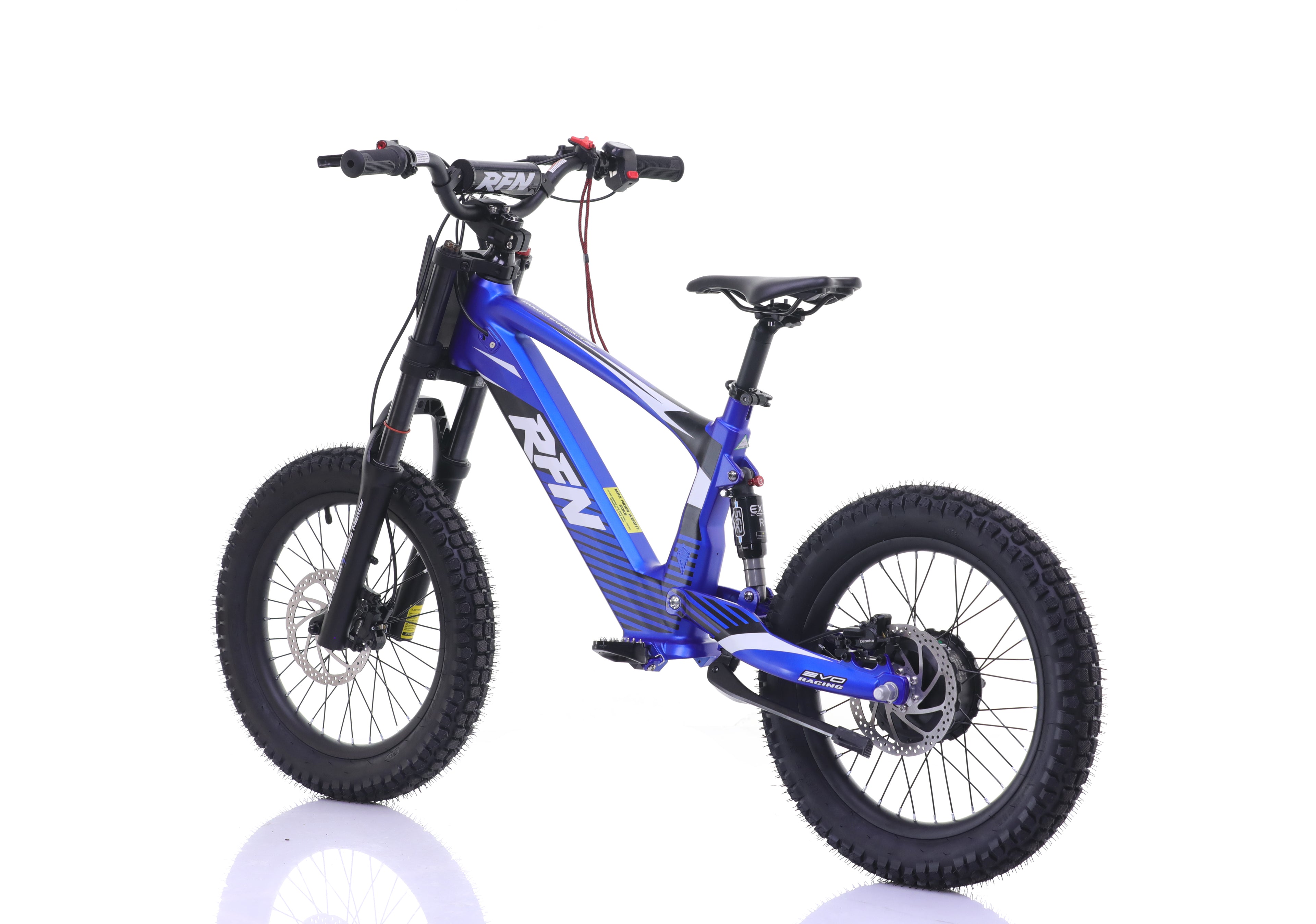

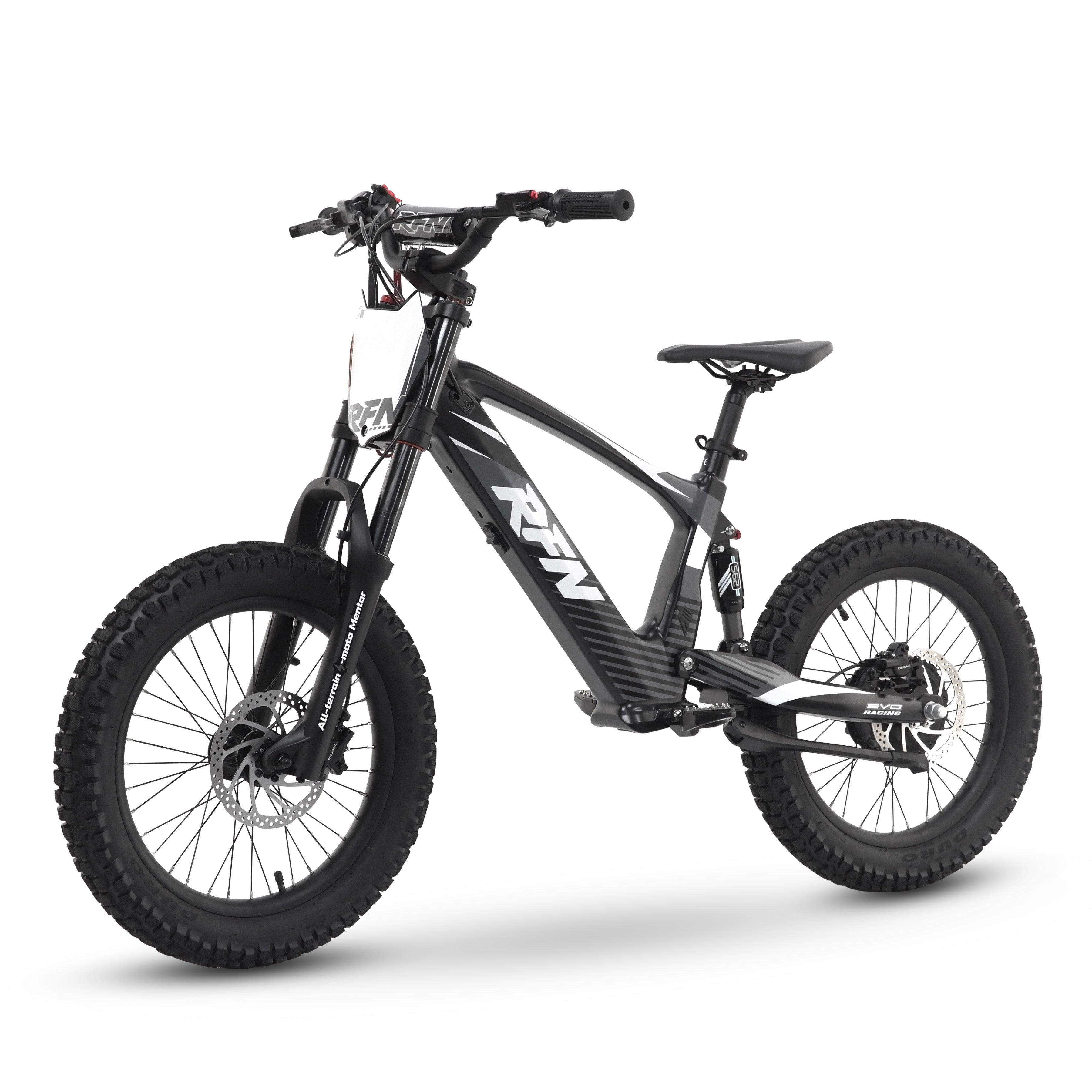

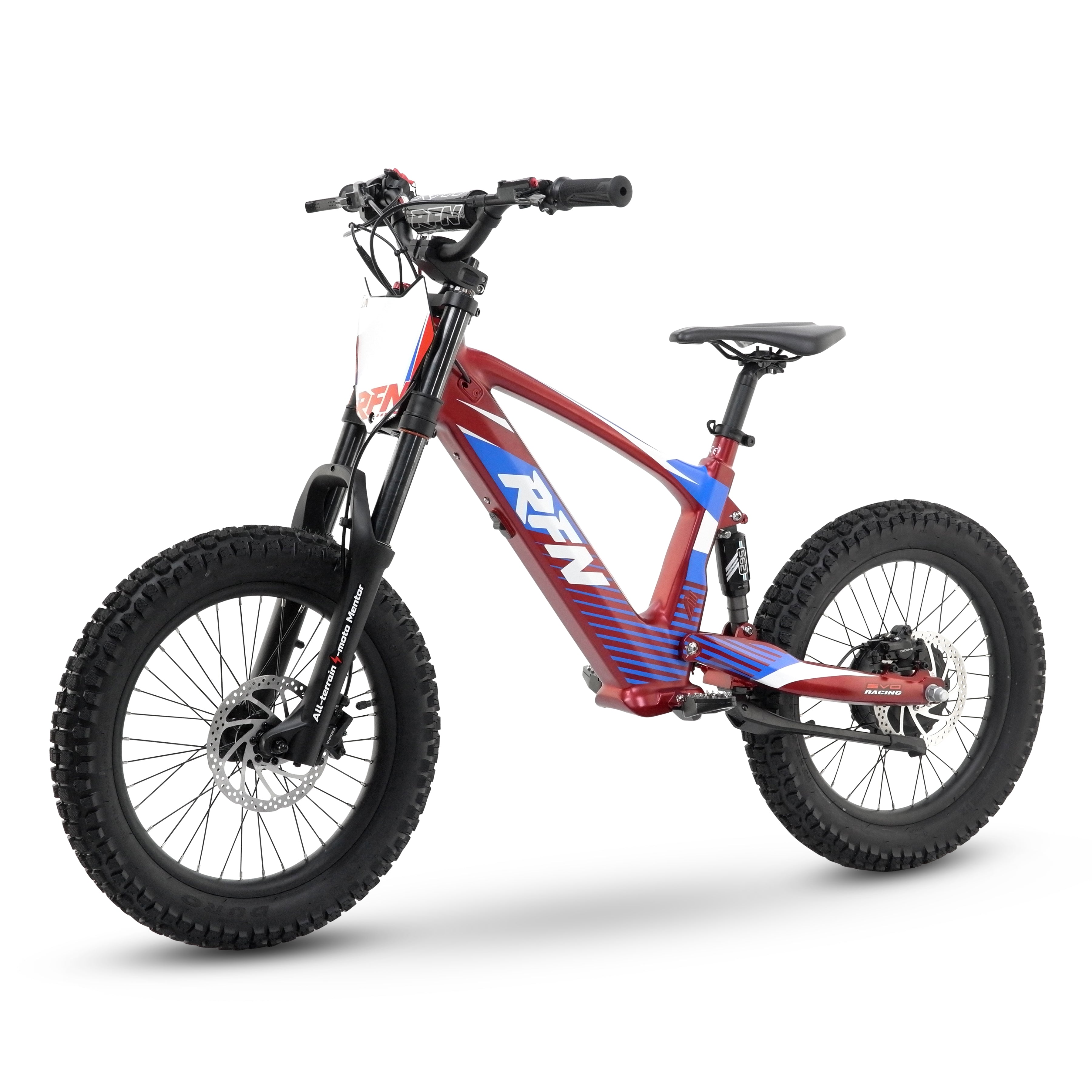

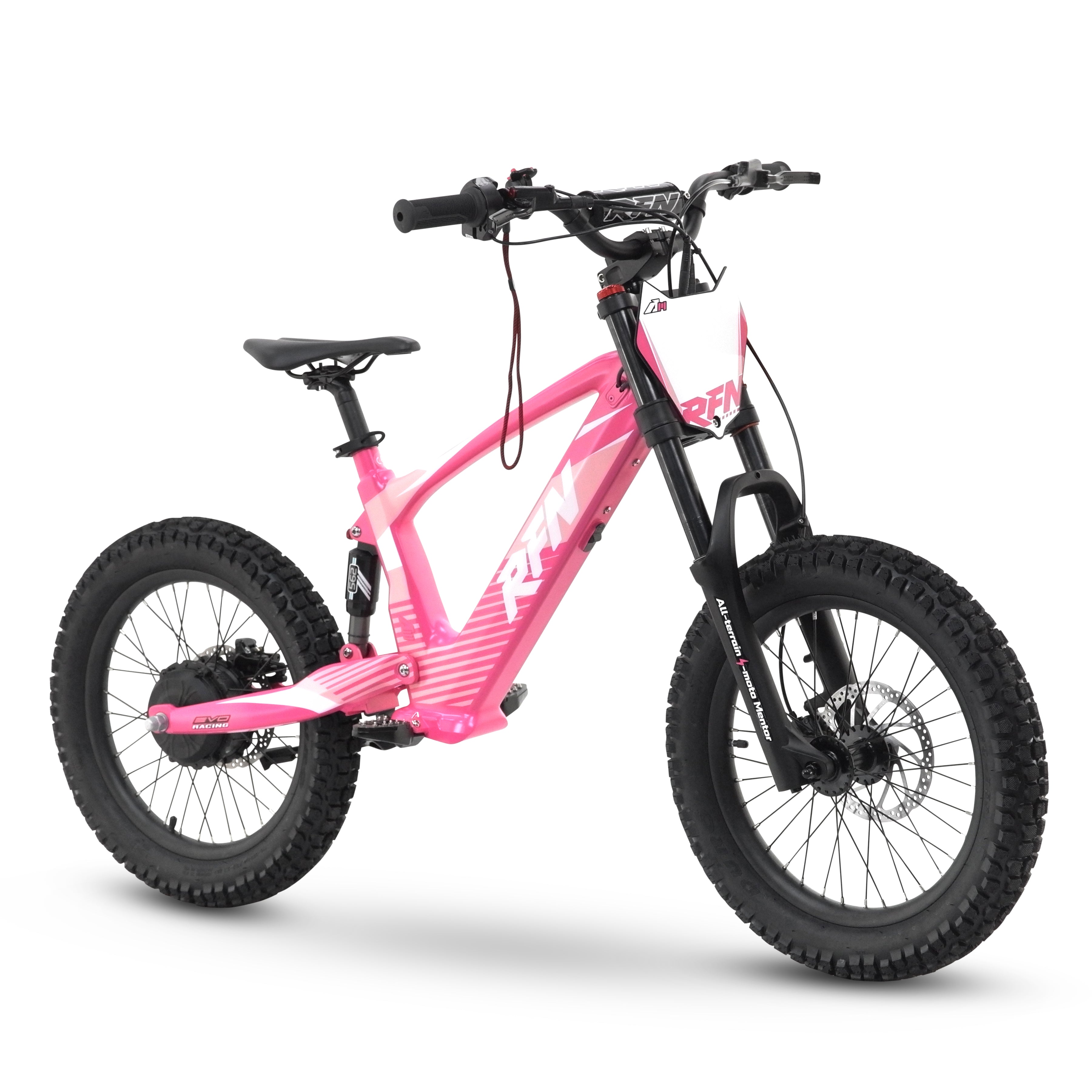

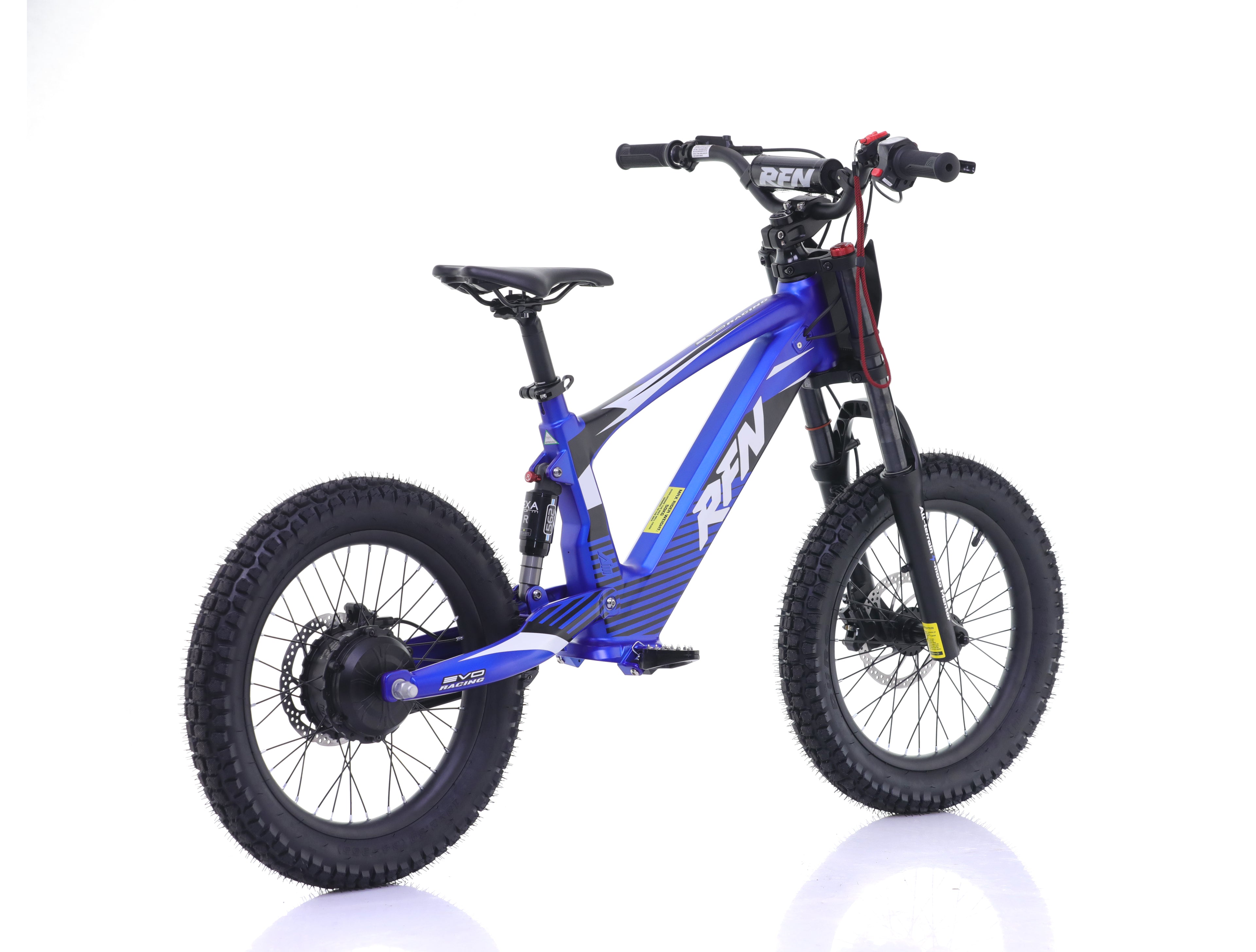

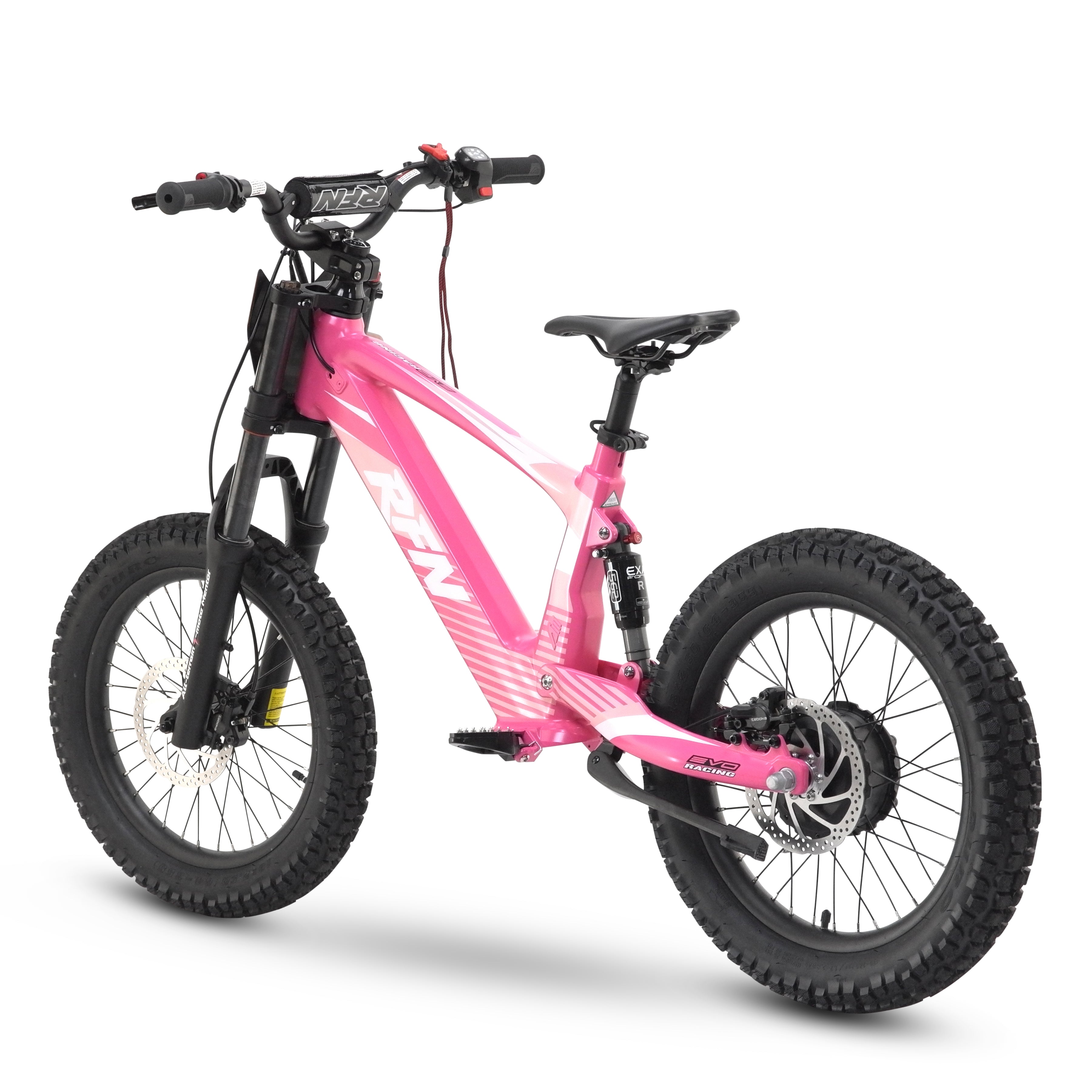

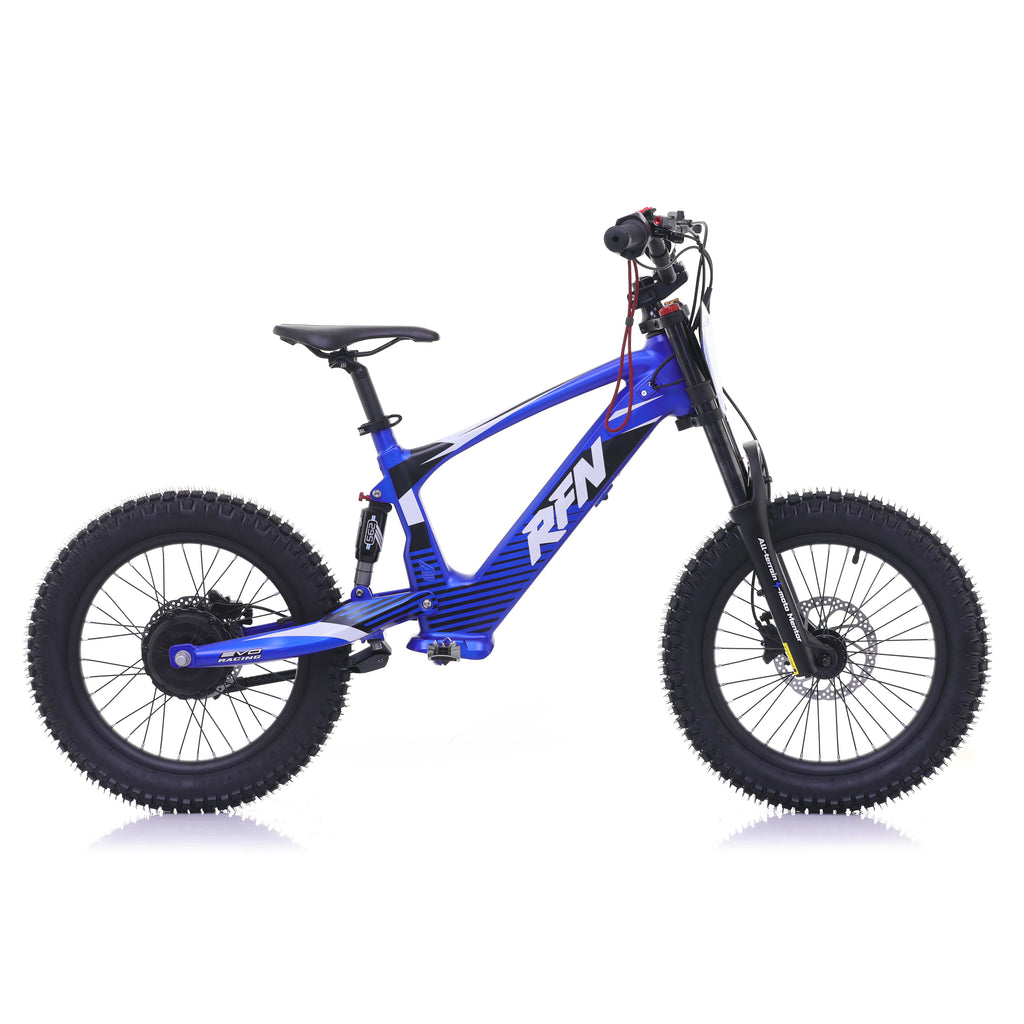

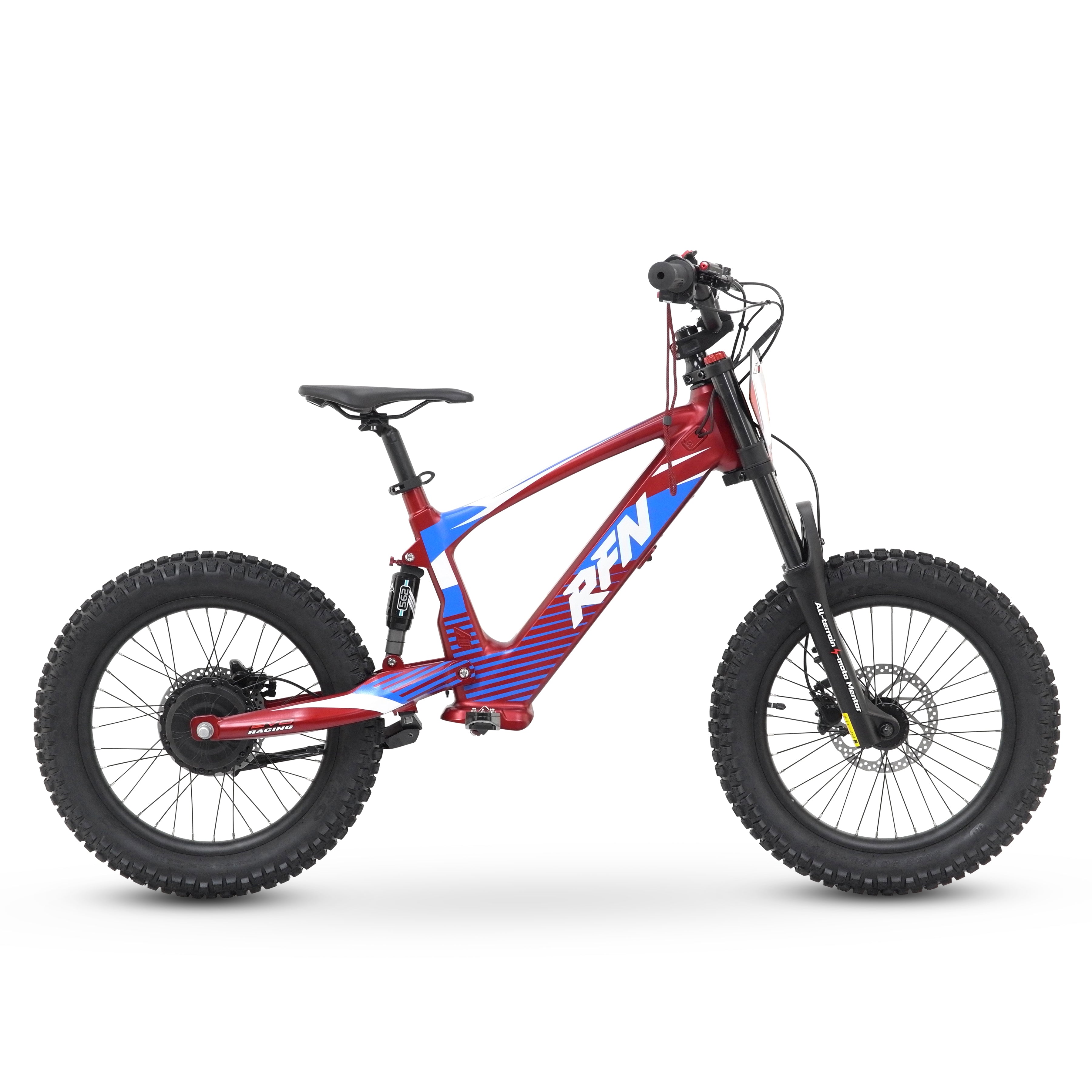

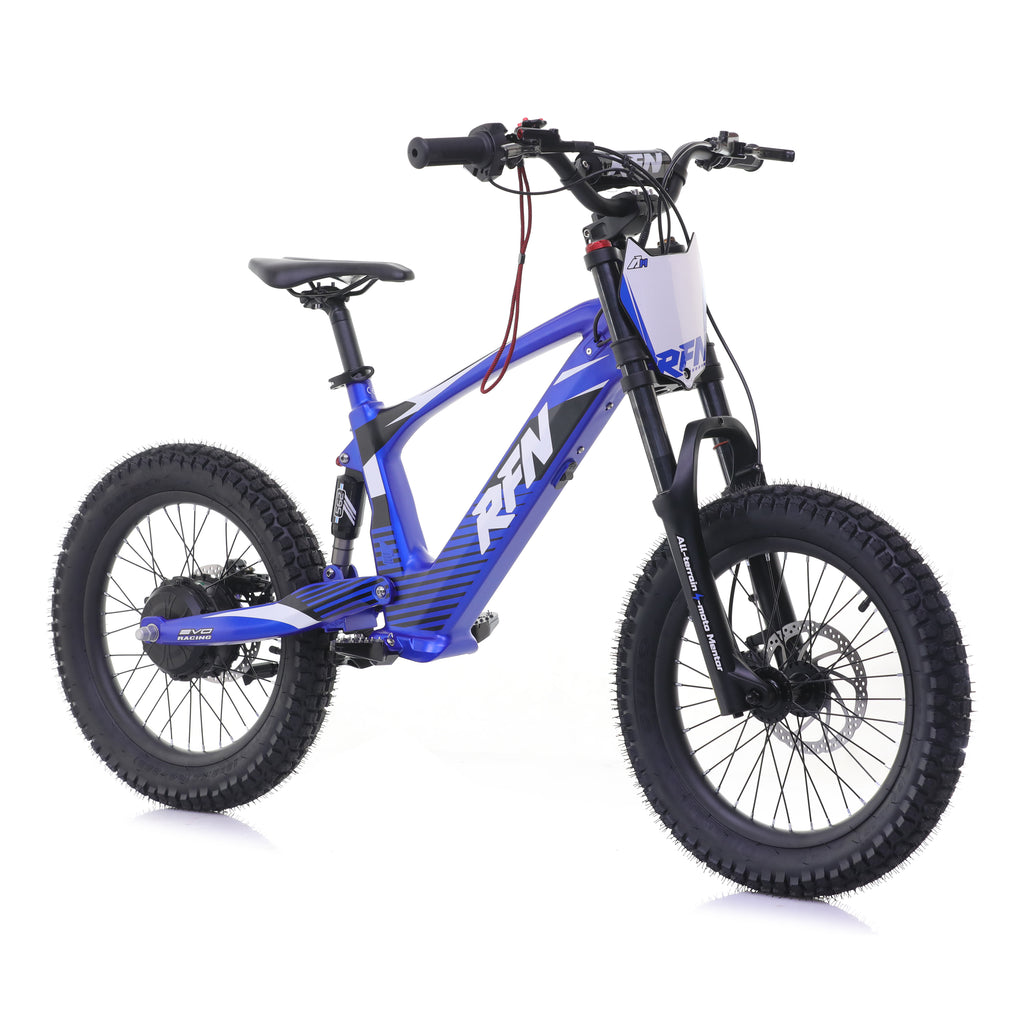

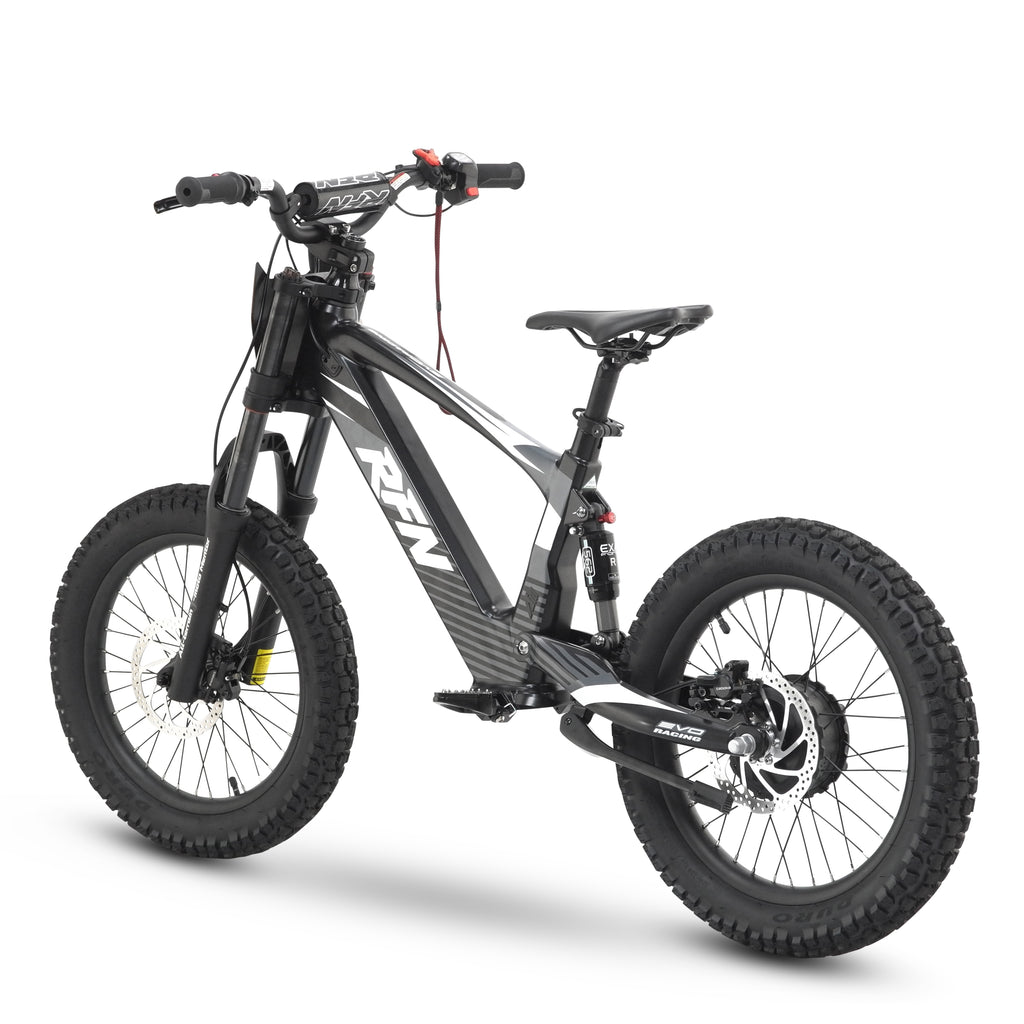

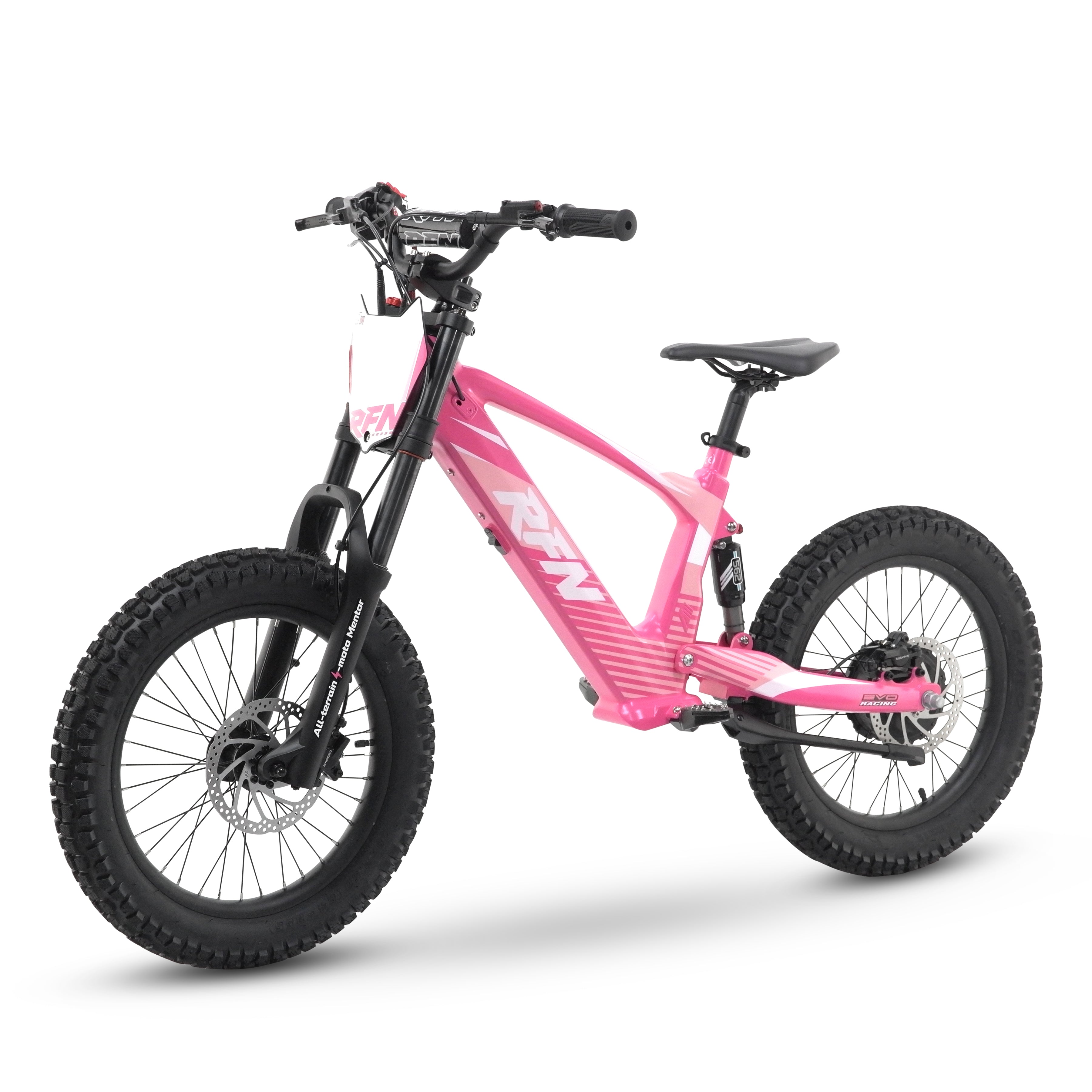

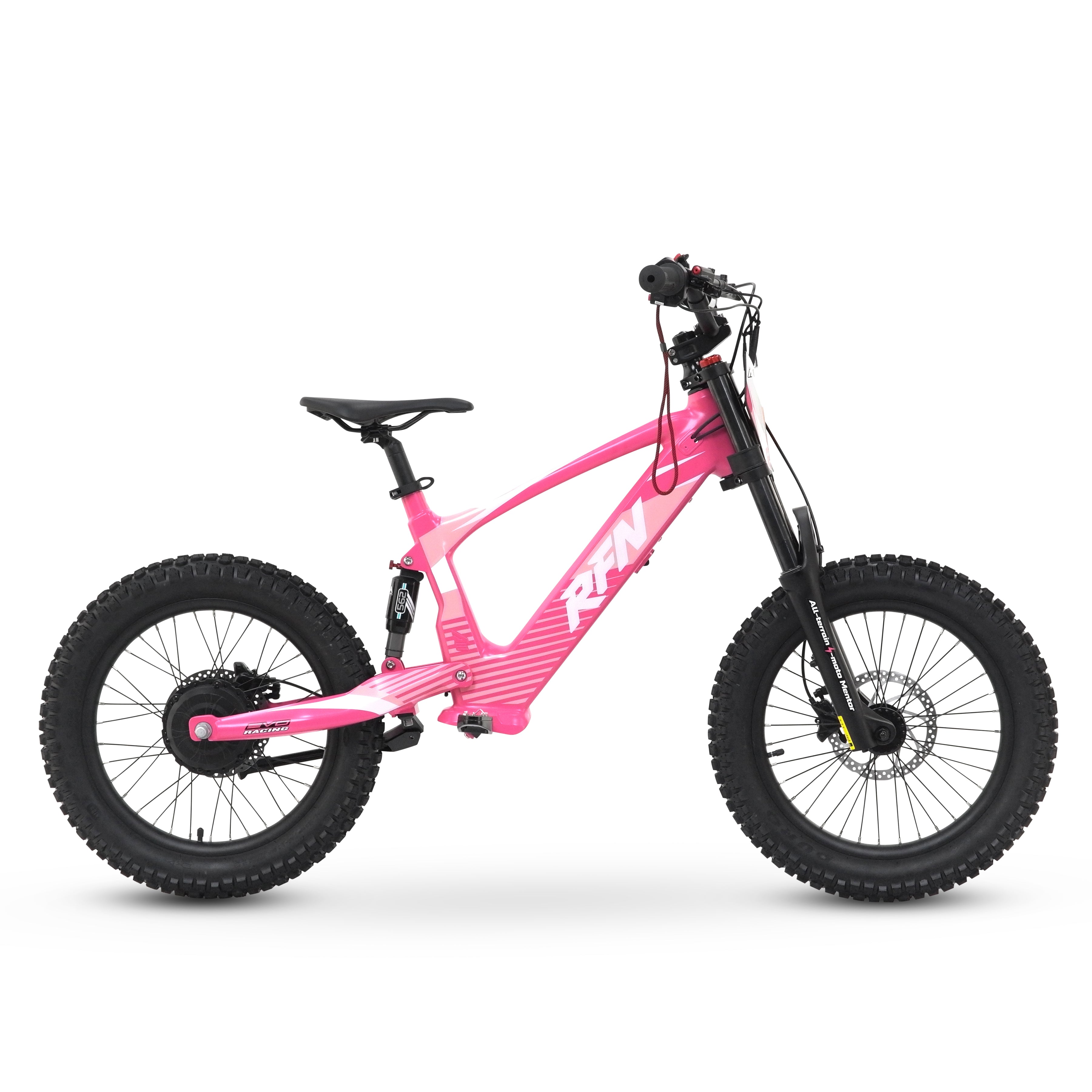

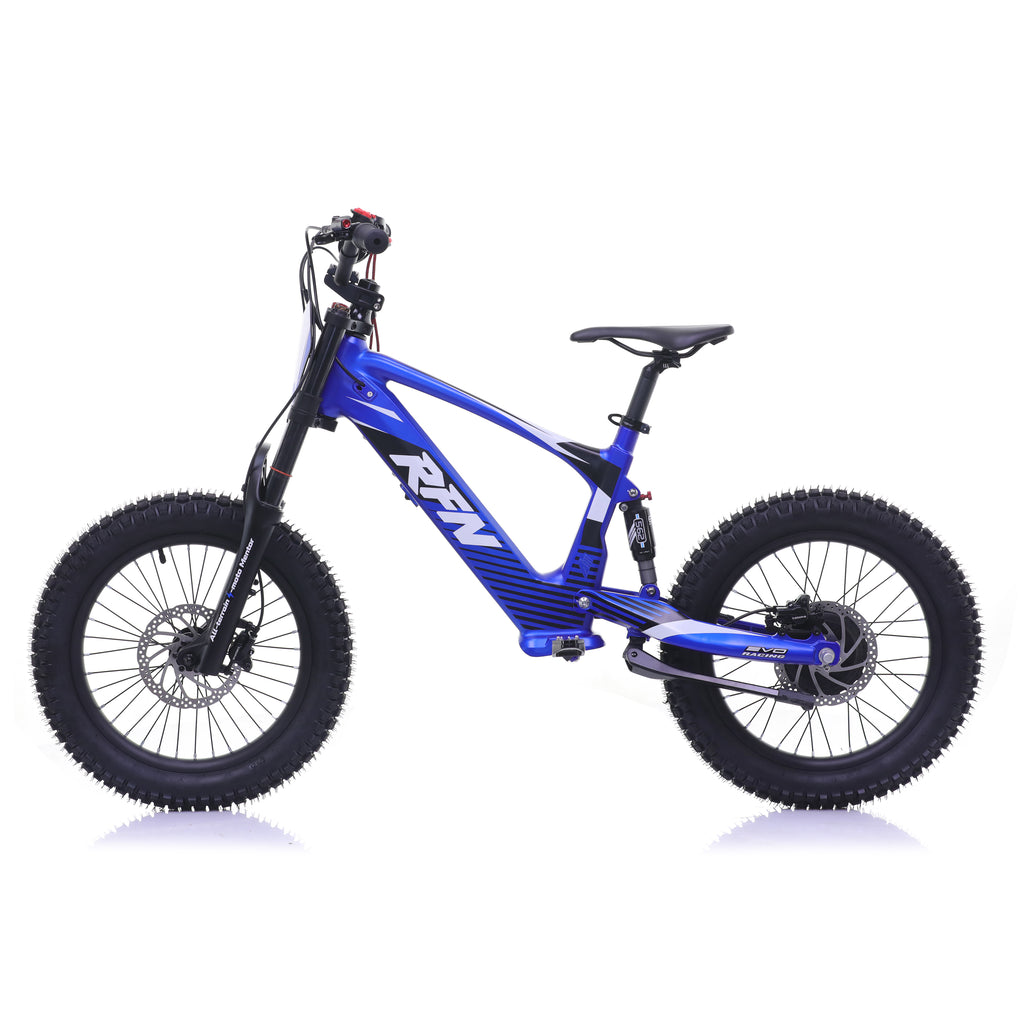

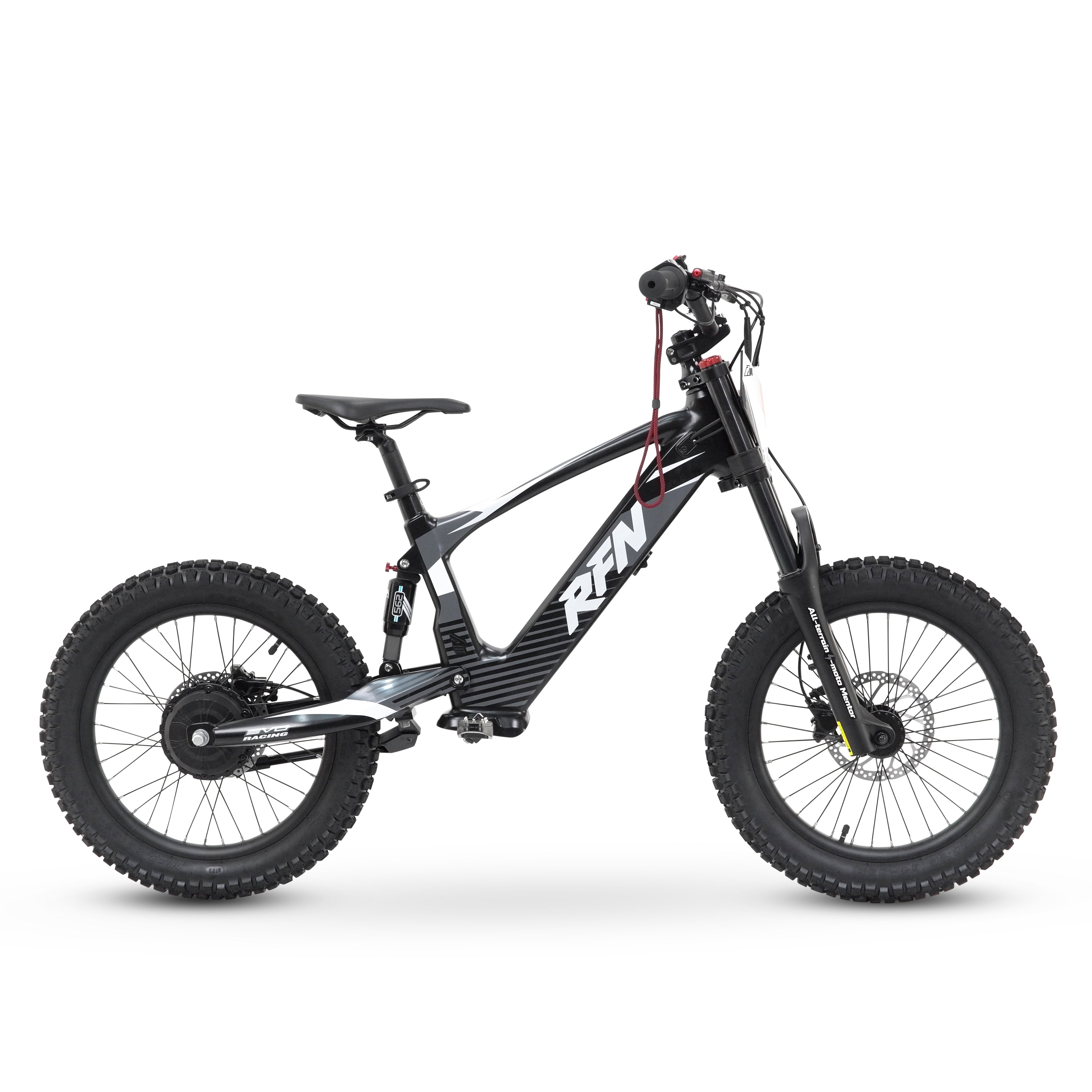

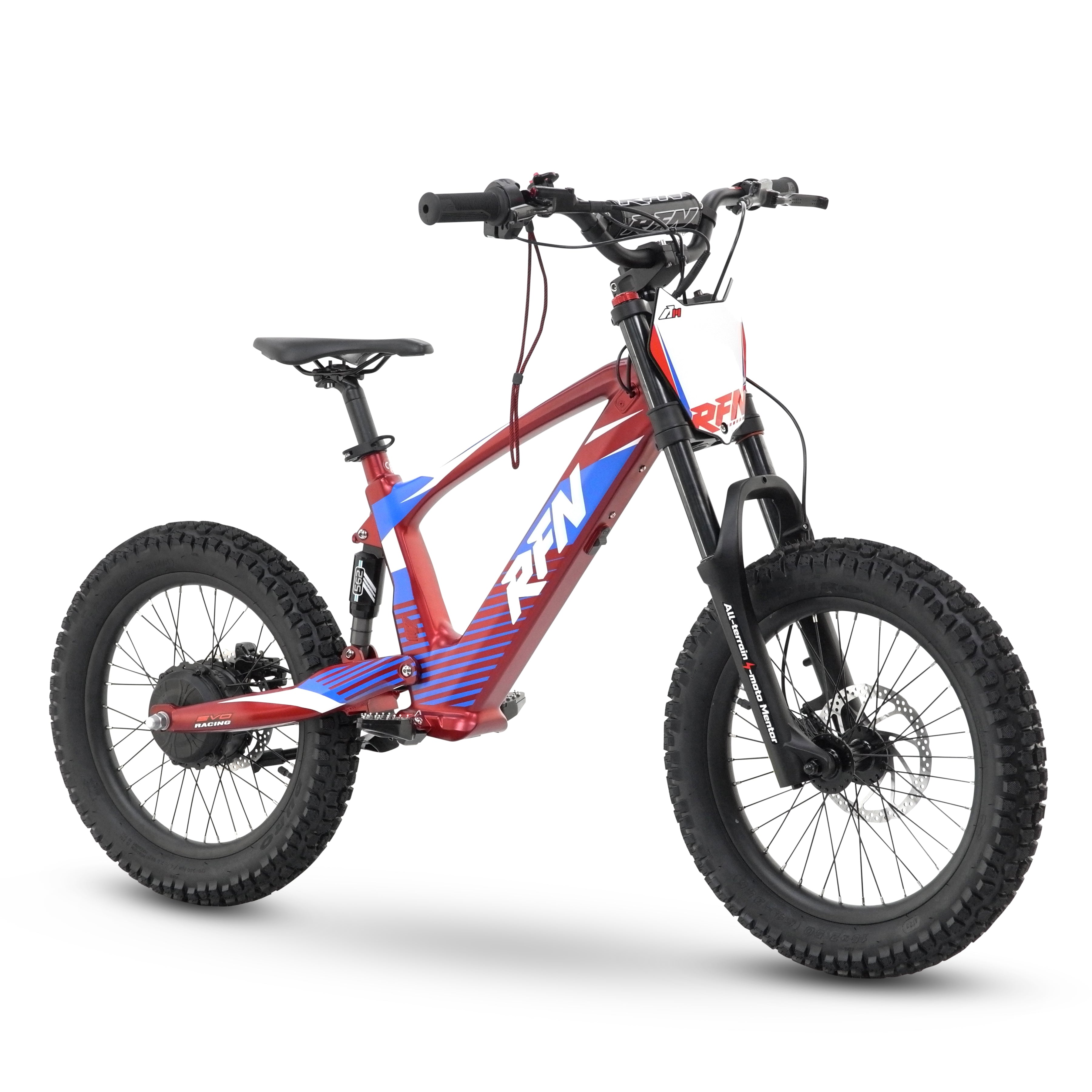

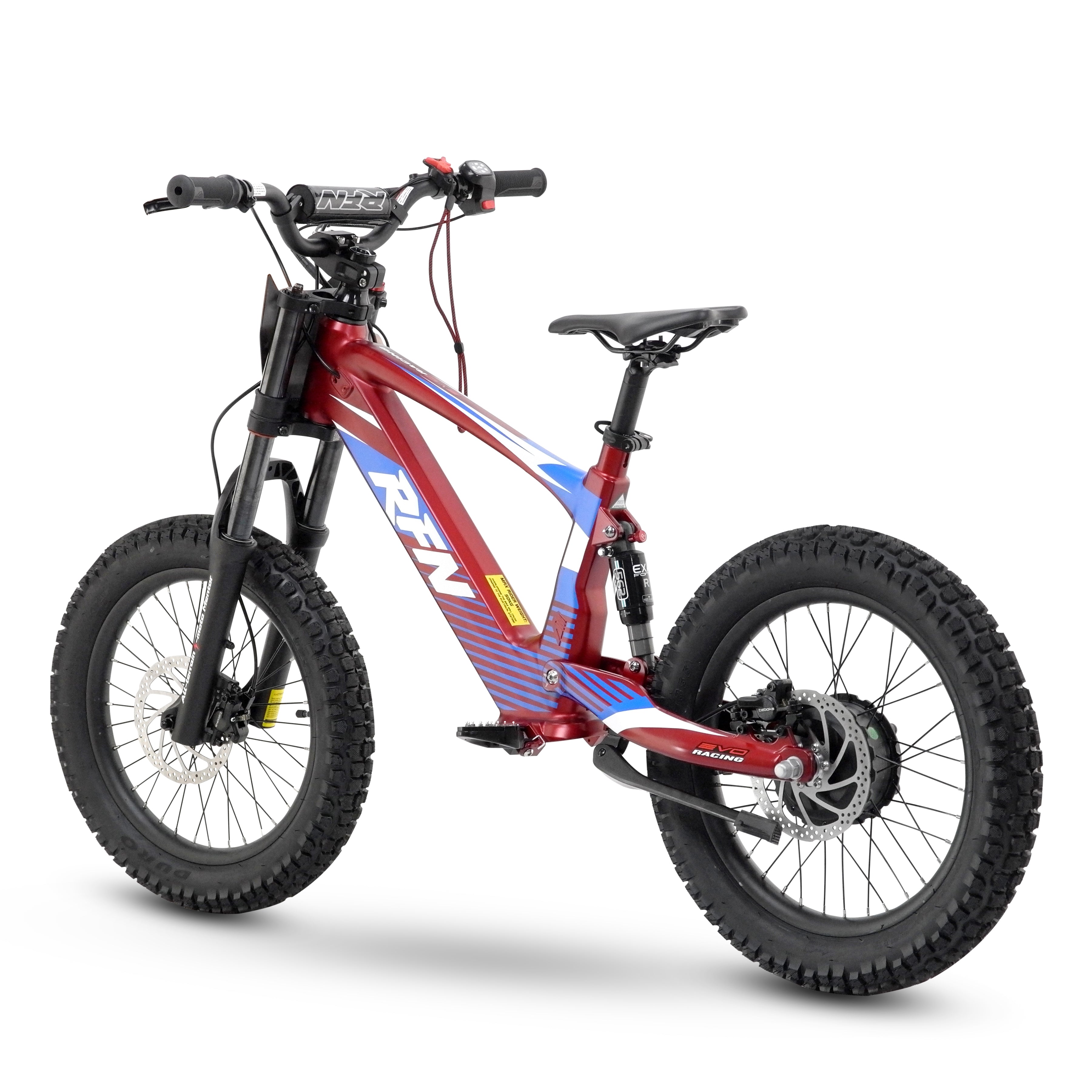

| RFN EVO RACING 18 | ||||
|---|---|---|---|---|

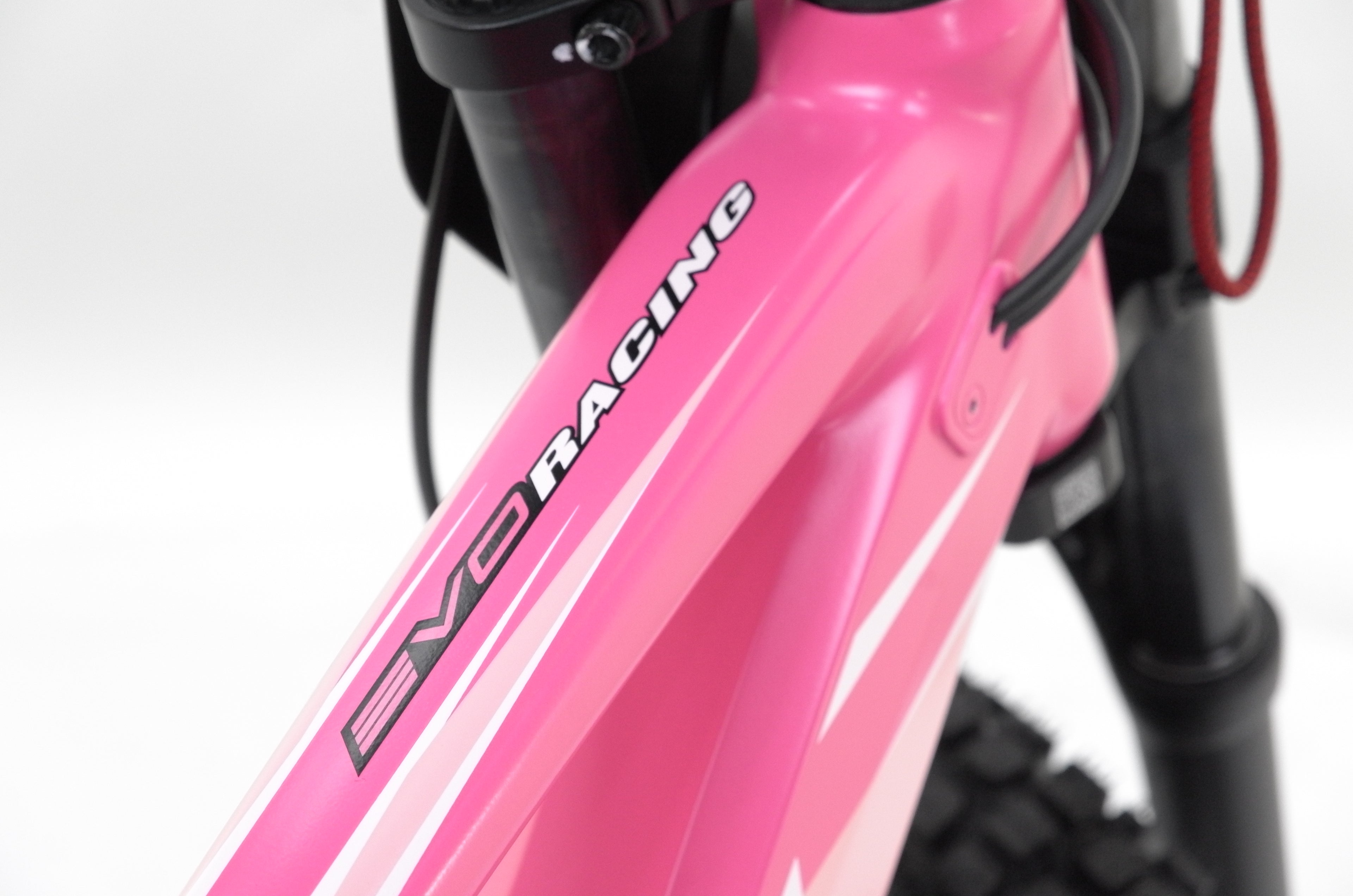

| Specs | Frame | Aluminium alloy | Tire | 18X2.5 (Mountain tread) |
| Color | Red / Blue | Rims | Magnesium alloy wheel | |

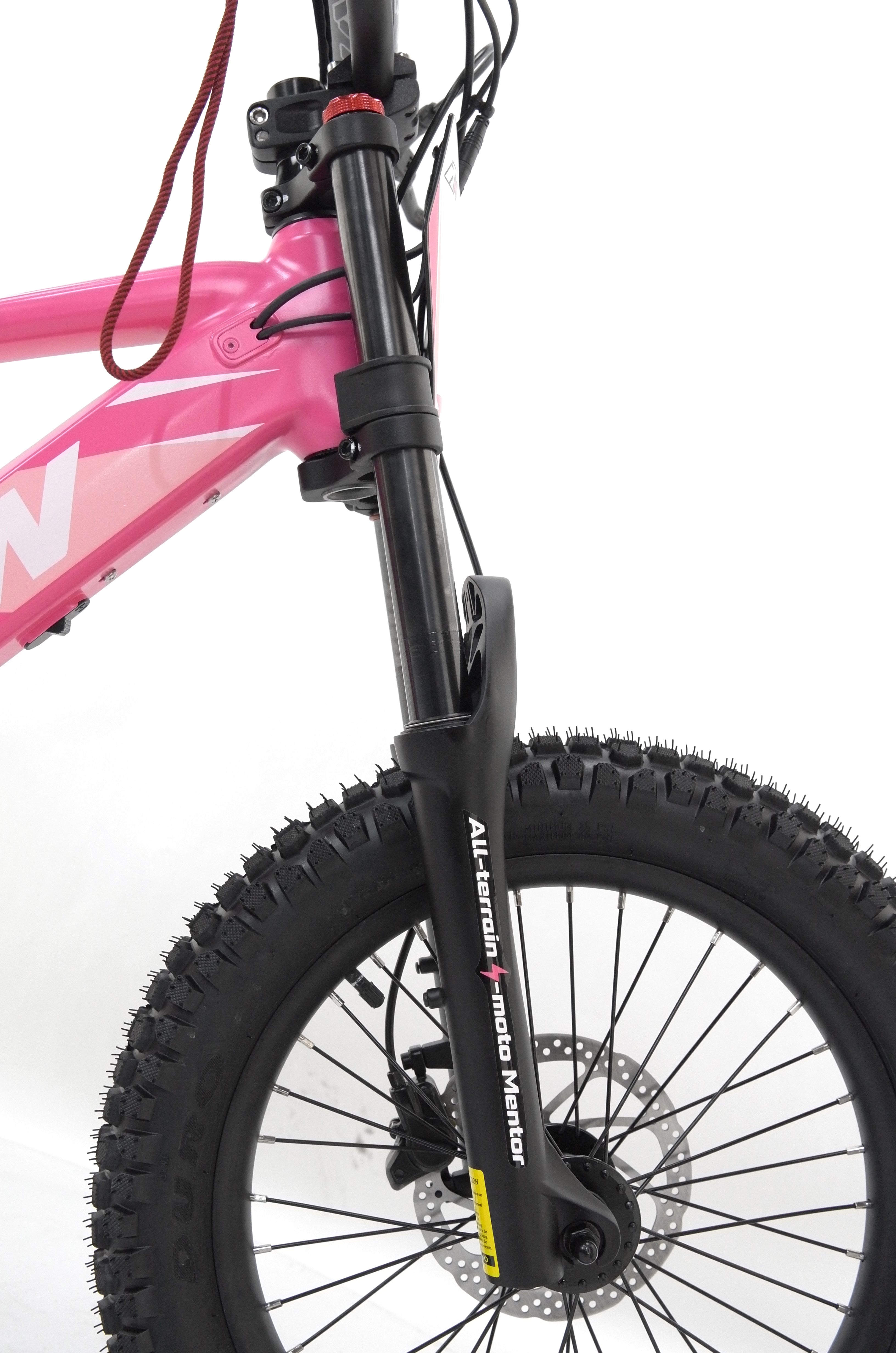

| Front Fork | Front suspension fork | Endurance mileage | 15km | |

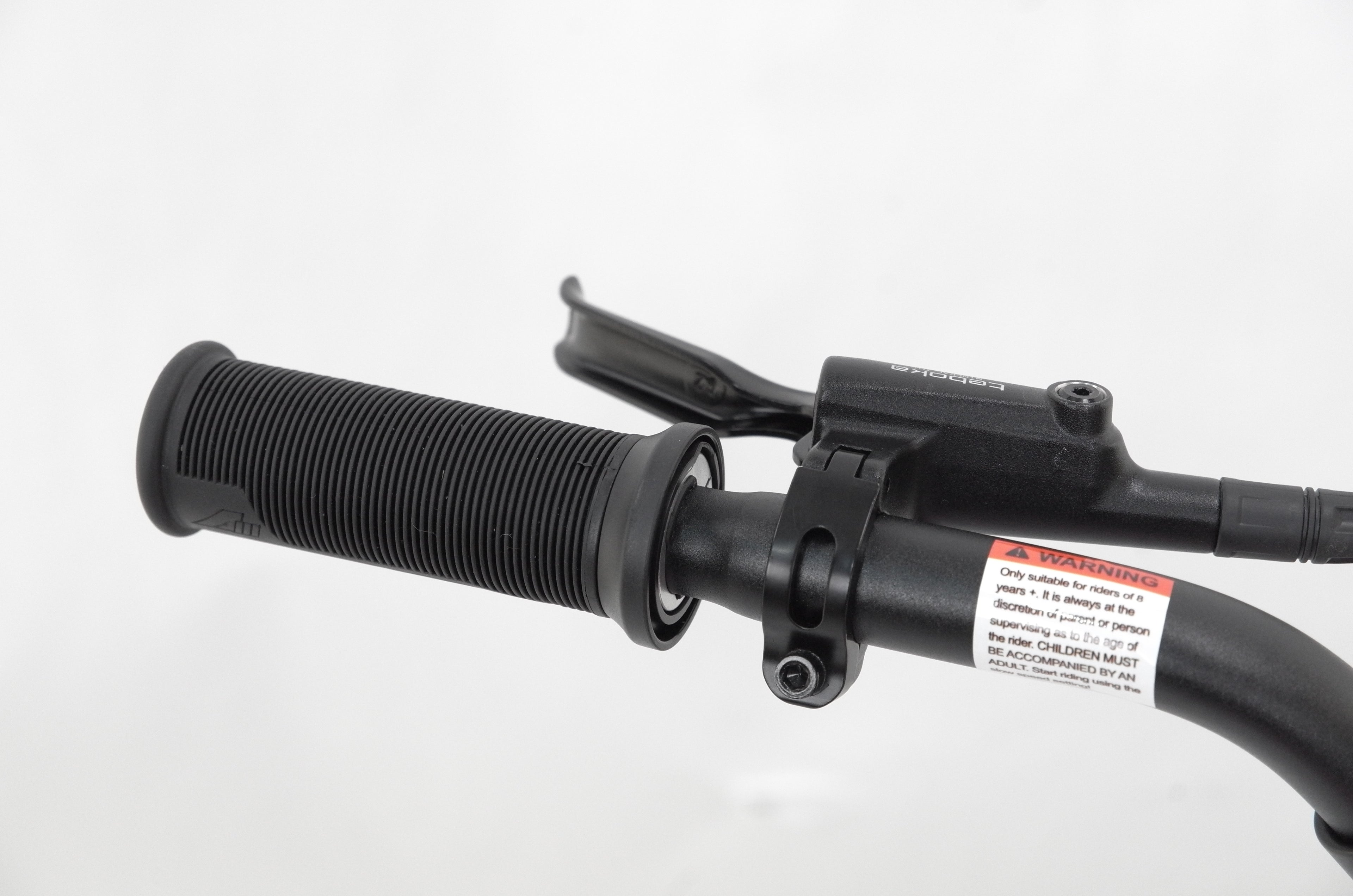

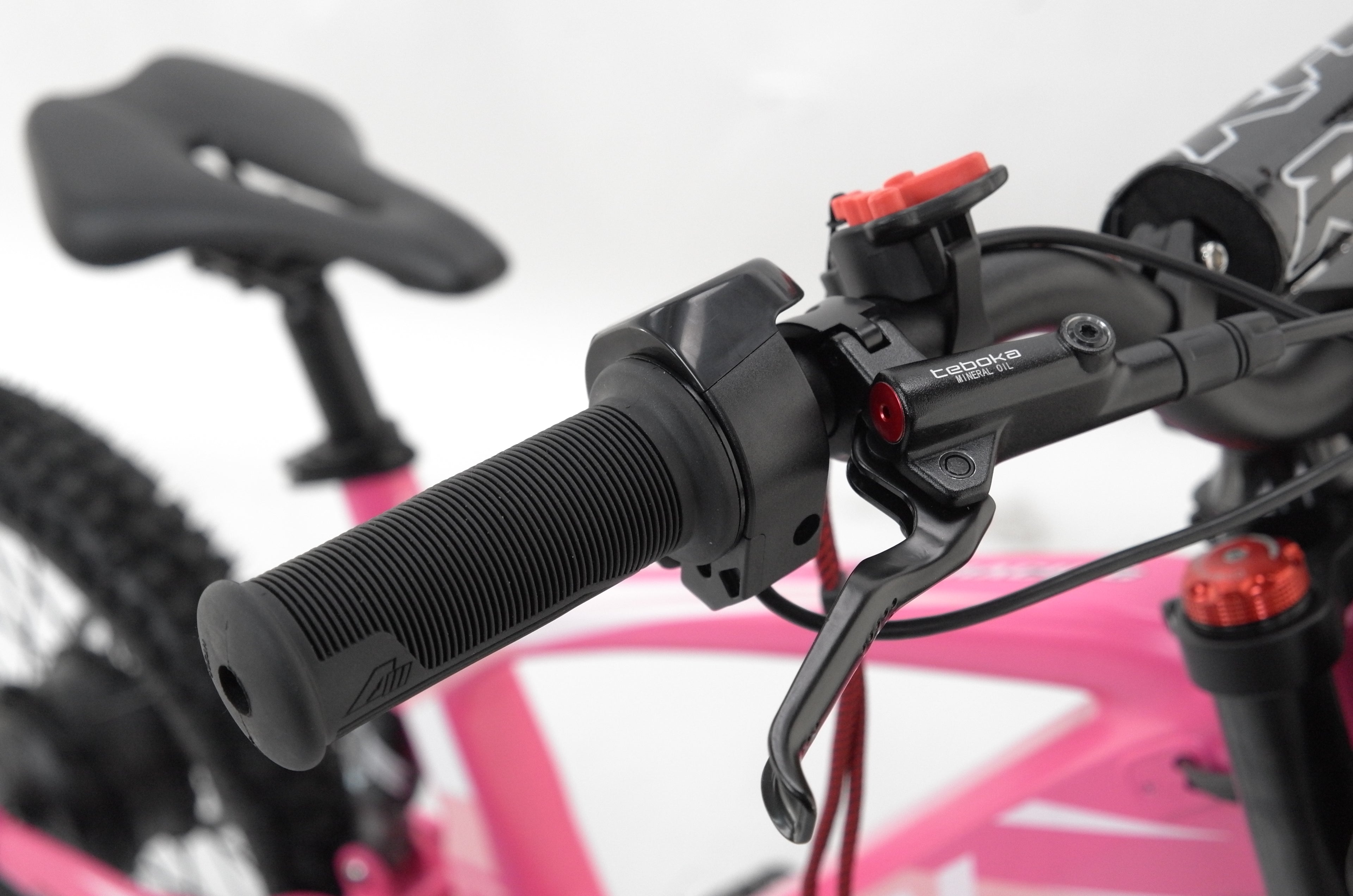

| Brake | F/R Hydraulic brake | Max speed | 30km/h | |

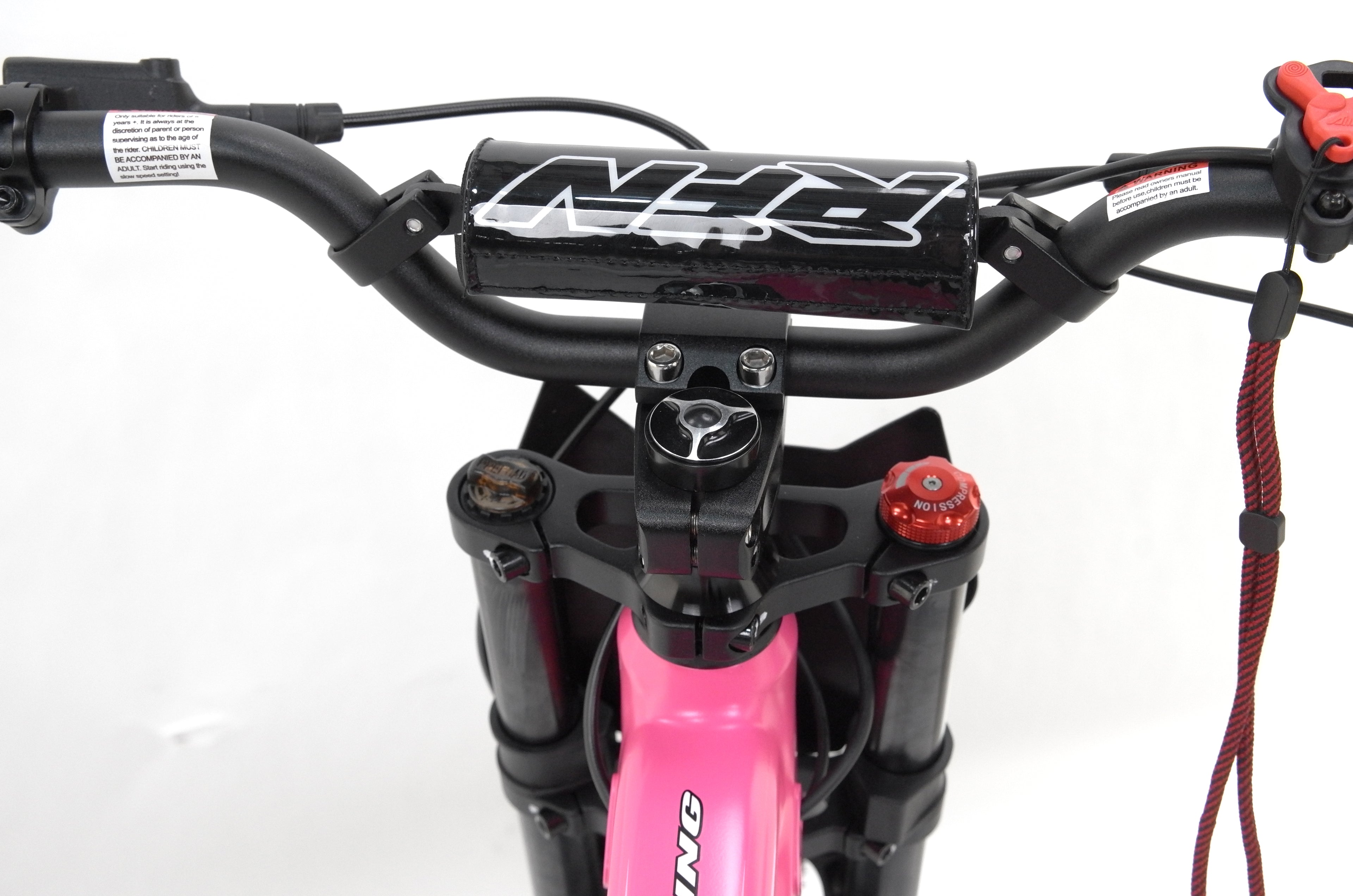

| Handle bar | 6061/Φ19*Φ22.2*620mm | N.W | 20.58Kg | |
| Stem | 6061/28.6*25.4mm | G.W | 24.5Kg | |

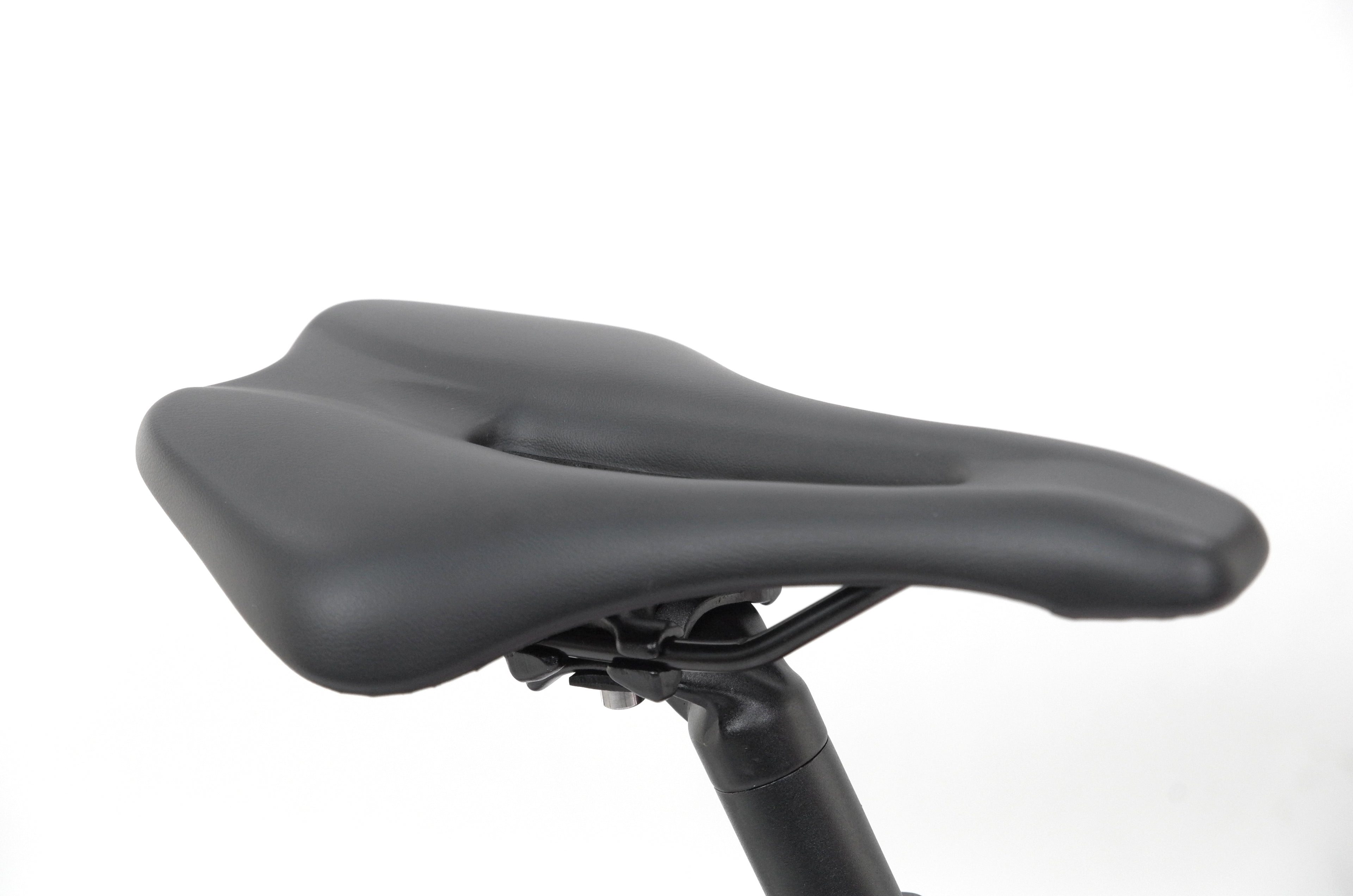

| Saddle | Vacuum Integrated Seat | Max load | 70kg | |
| Grip | Non-slip silicone grip | Package size | 126*29*69cm | |

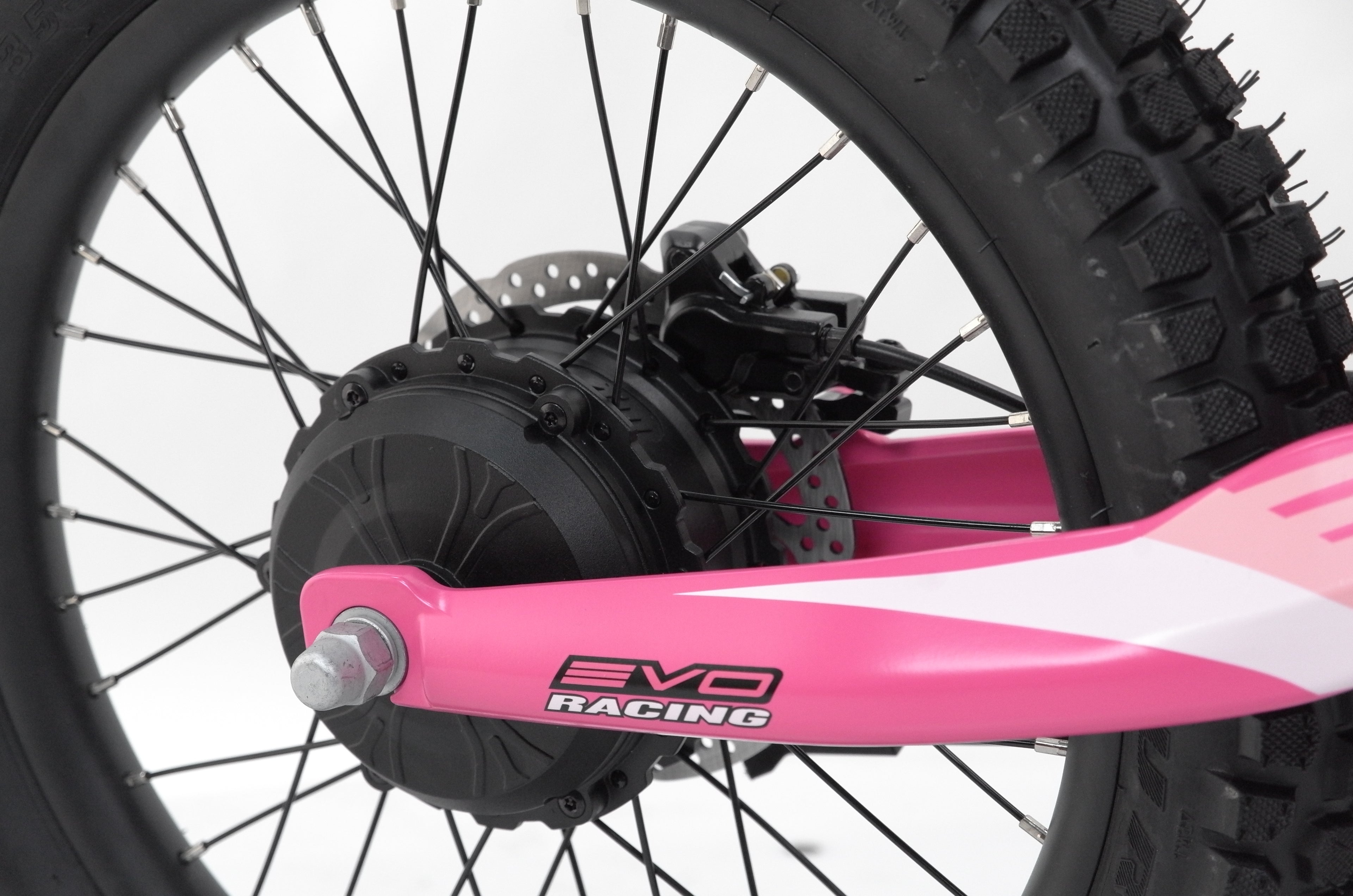

| Electrical part | Motor | Motor Model | Integrated wheel | |
| Rated power | 36V500W | |||
| Wheel base | 178mm | |||
| Open | 128mm | |||
| Wheel diameter | 18″ | |||
| Max power output | 750W | |||
| No-load current | ≤2A | |||
| No-load speed | 350r/min | |||
| Rated speed | 320r/min | |||
| Rated current | 13.8A | |||
| Torque | 42N.m | |||
| Efficiency | ≥81% | |||
| Waterproof level | IP66 | |||
| Controller | Control mode | Sine wave | ||
| Rated Voltage | 36V | |||
| Speed limit | 30km/h | |||
| Current limiting | 30A | |||
| Max output | 750W | |||
| Undervoltage protection value | 28±1V | |||
| Stoppage protection duration | 1s | |||
| Speed governing | Low : 15km/h Middle: 22km/h High: 30 km/h |
|||
| Waterproof level | IP65 | |||
| Battery | Capacity | 5AH | ||
| Cycling Life | ＞300 times | |||
| Max current | Instantaneous current 100A, continuous current 30A | |||
| Waterproof level | IP54 | |||
| Charging mode | DC5.5*2.1 | |||
| Charging voltage | AC:100-240V DC:42V3A |
|||
| Operating temperature | ’-20℃-60℃ | |||
| Overcharge Protection | 42.5±0.1V | |||
| Over discharge protection | 26V | |||
| Max current protection value | 81±4A | |||
| Short circuit protection | With | |||
| Temperature protection | 70℃ | |||

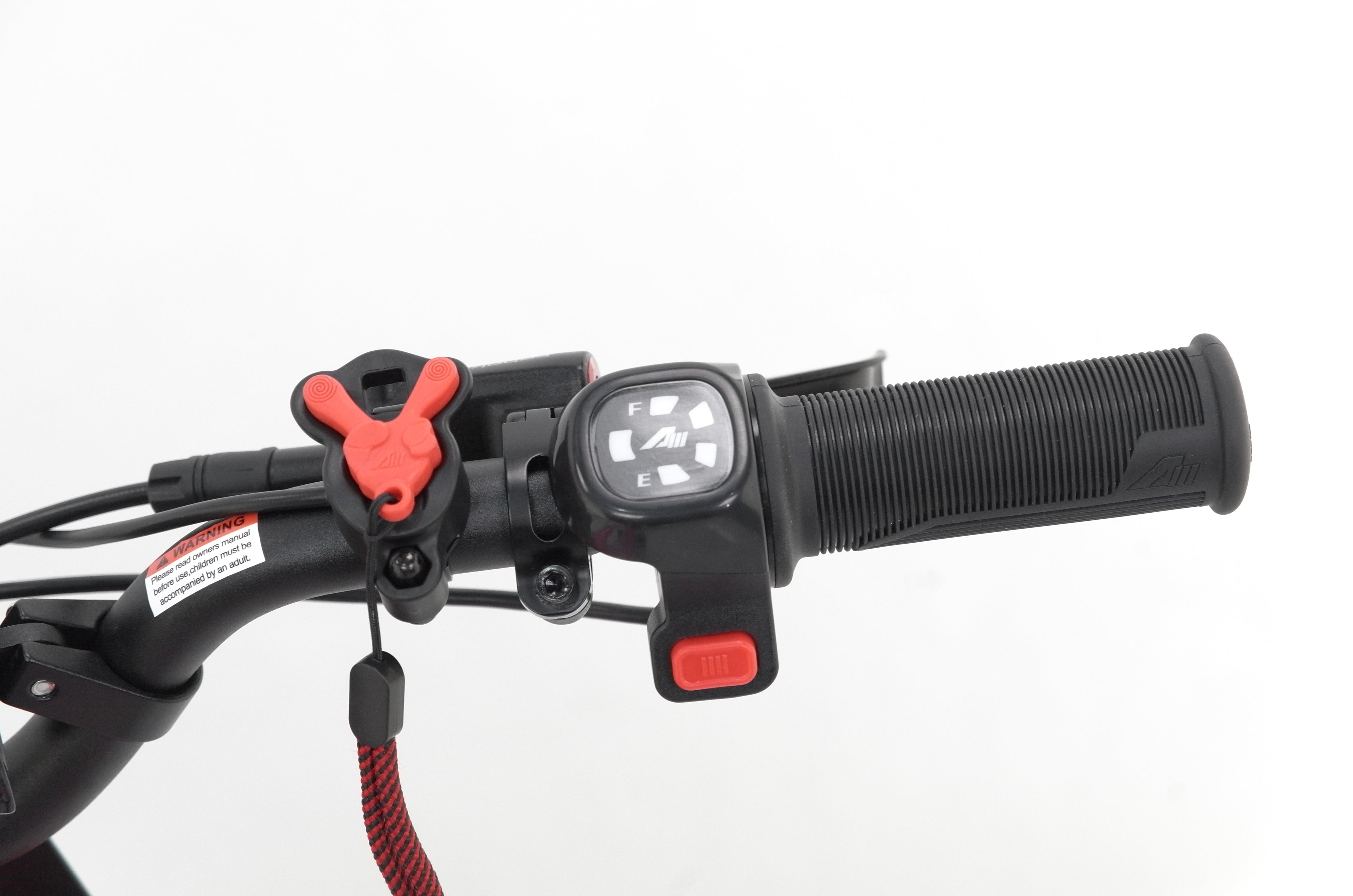

| Display | Display screen | LED | ||
| Waterproof level | IP54 | |||
| Voltage | 36V | |||
